1. A 380 V, 20HP, 60 Hz four-pole Y-connected three phase induction motor has the following impedances in ohms per phase referred to the stator circuit: R1 =0.6 ohm, Xl = 1 ohm, R2=0.3 ohm, X2 =0.45 ohm, 614141351b406.jpg (magnetizing reactance) =25 ohm.
 The total rotational losses are 1000W and are assumed to be constant. The core loss is neglected. For a rotor slip of 2 percent at the rated voltage and rated frequency, find the motor's stator current. (10%)

2. The synchronous reactance for a round rotor synchronous generator is 1.0 and the armature resistance is negligible. Find the real power delivered by the generator when the terminal voltage is61414177959d4.jpg and the open-circuit voltage is61414196e0e9d.jpg(10%)
(a) Compute the per unit values for the resistances and leakage reactance for the two windings. (10%)
(b) When the low voltage winding delivers power to a load of 20KW, 0.9 power factor lagging at 200V, find the per unit voltage at the high voltage side. (6%)

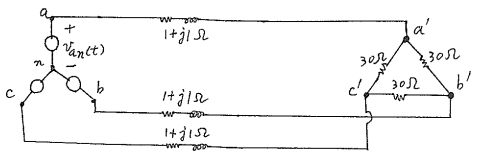

4. Given the 60 Hz, balanced three-phase system shown below, find 6141423c8badf.jpg when61414261f34de.jpg(10%)

5. Assume tha614142a5b9b28.jpg . Find the maximum value for614142c25ec4f.jpg (10%)

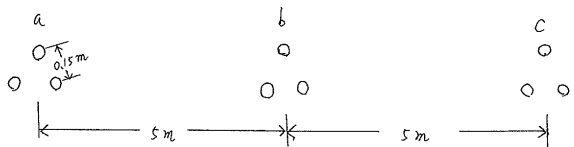

6. The radius of each sub-conductor is 1 cm for the following 345 KV, 60 Hz, completely transposed balanced three phase lines. Find the per phase inductance In H/m and per phase capacitance to neutral in F/m. (10%)
(a) How many modes if the converter operates in continuous conduction mode (CCM)? Draw the equivalent cireuit of each mode. (4%)
(b) Determine the inductance of L if the co nverter is operating at the boundary conduction mode (BCM), where inductor current touches zero right before switch turn-on. (4%)
(c) Follow qucestion (b). Draw the time waveforms of below variables for two switching periods. Mark the peak and valley values. Define the variable polarity in the circuit. Calculation procedure is required. Duty cycle, current through L, current through Co, voltage across L. (8%)

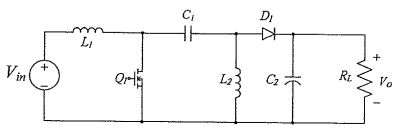

(a) What is the de voltage across Clwhen the converter below is in steady-state operation? (5%)
(b) Find the RMS value of a sine wave signal with peak value of 10 V. (3%)

(c) Why the diode Dlin the buck converter below will turn-on after Ql tumn-of!? (3%)
(d) Why the integration of inductor r voltage across a switching period is zero for a buck converter at steady-state? (3%)
(e) Follow (c). Assume there is a small inductor in series with RL. Draw the voltage waveform of this inductor voltage for two switching periods. (4%)
