76.在鏡檢蘇木紫與伊紅染色的肌肉組織切片，所看到的橫紋為下列何構造？
(A)I band
(B)A band
(C)M line
(D)Z line

答案：登入後查看
統計： A(227), B(877), C(425), D(857), E(0) #1631696

詳解 (共 3 筆)

#3483043

5d2aef7f997c1.jpg#s-829,602

5d2aef97949df.jpg#s-492,404

5d2aefb4b494b.jpg#s-595,391

Skeletal Muscle, Longitudinal Section, Normal Mammalian Muscle, Cytoarchitectural Characteristics.

Note the peripherally located myofiber nuclei and cross-striations on the muscle fibers.

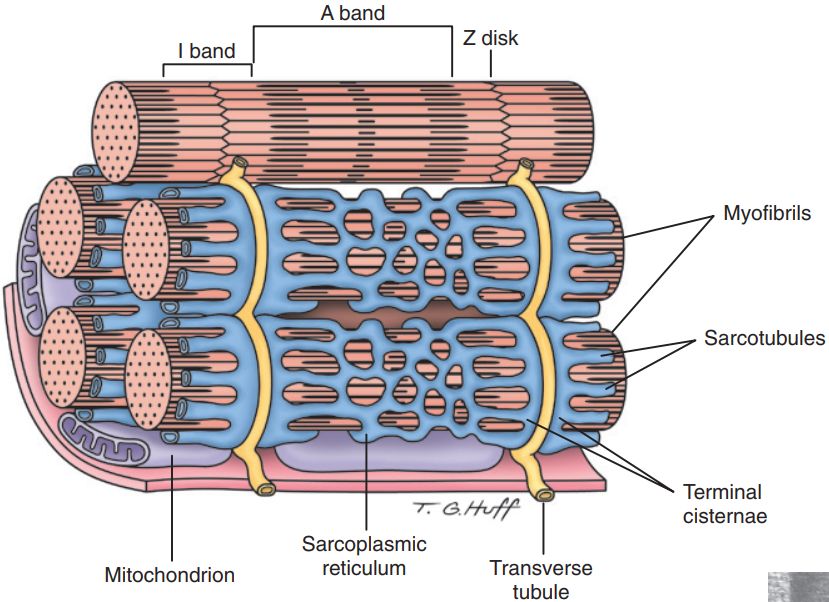

The cross-striations correspond to the A bands (dark lines) and I bands (light lines) in the transmission electron micrograph of Fig. 15-3, B.

Myofibers are surrounded by an extensive capillary network (arrow).

基於正常橫紋肌長這樣，Z line是看不到的

24
1
#2366776
橫紋為粗、細肌絲重疊造成。詳見 http...
(共 46 字，隱藏中）
前往觀看
21
0
#6438148
A bands (dark lines)...
(共 98 字，隱藏中）
前往觀看
2
0
