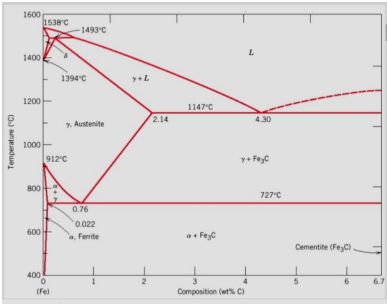

3. The figure shows the Fe-Fe3C phase diagram. Consider 3.0 kg of austenite containing 1.2 wt % C ,

(a) make schematic sketches of the microstructure that would be observed for conditions of very slow cooling at the following temperatures: 1000°C, 728°C, and 726°C. Label all phases and indicate their approximate compositions.
