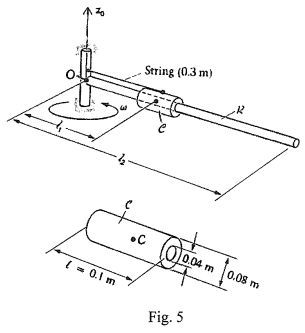

5. (20%) The 2-kg collar C in Fig. 5 turns along the smooth rod R. which is  l₂=I m long, has a mass of 3 kg, and is mounted in bearing with negligible friction. The angular speed is increased until the string located at l_I=0.3m breaks (its tensile strength is 60N) and at that instant the external moment is removed.
