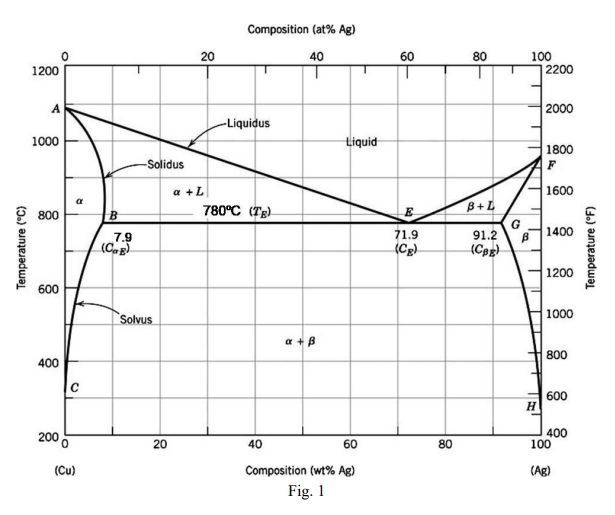

3. Use the silver-copper phase diagram shown in Fig. 1. For a Cu-Ag alloy of 50 wt.% Ag, answer the following: (20%)
申論題內容
(b) Determine the phases present, compositions of the phases, and relative amounts (weight
fractions) of the phases when solidification is just complete (at a temperature just below the
eutectic temperature).
