93年 - 93 淡江大學轉學考電路學#56421

科目：轉學考-電路學 | 年份：93年 | 選擇題數：0 | 申論題數：4

試卷資訊

所屬科目：轉學考-電路學

選擇題 (0)

申論題 (4)

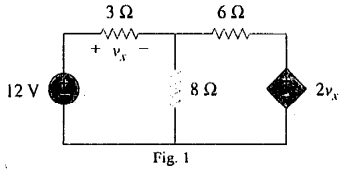

【已刪除】1, Determine in the circuit of Fig. 1. (25%)

【已刪除】2, The switch in Fig. 2 has been in position a for a long time. At / = 0, it moves to position b. Find v(t) for t ＞ 0. (25%)

【已刪除】3. The switch in Fig. 3 has been open for a long time and is closed at t = 0. Find i(t) and v(t) for t ＞ 0. (25%)

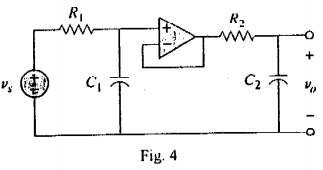

【已刪除】4. Given that v_s = 10u(t) V in the op amp circuit of Fig. 4 assuming zero initial condition, find v_o(t) for t ＞ 0. Let R₁ = 1Ω,R₂ = 2Ω,C₁ =C₂=1 F (25%)
