96年 - 96 淡江大學 轉學考 電路學#56034

科目：轉學考-電路學 | 年份：96年 | 選擇題數：0 | 申論題數：7

試卷資訊

所屬科目：轉學考-電路學

選擇題 (0)

申論題 (7)

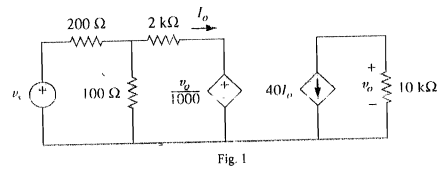

【已刪除】1. (20%) Consider the circuit shown in Fig. 1，determine the gain vo / vs .
(10%) (a) Compute the value of R that has maximum power transfer (o the IOO resistor in Fig. 2
(b) Find the maximum power transfer to the 10Ω resistor in Fig. 2.
(10%) (a) Determine the ratio vo/is in the op a nip circuit shown in Fig. 3(a).
(10%) (b) Determine the ratio io/is in the op amp circuit shown in Fig. 3(b)

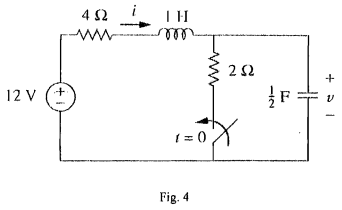

【已刪除】4. (20%) Compute the response v(t) and i(t) for t ＞ 0 of the circuit shown in Fig. 4.
【已刪除】5. (20%) Find the Thevenin equivalent circuit at terminals a-b in the circuit of Fig. 5,
