複選題

23. A square conductive loop of side L and resistance R is pulled with constant speed u out of a uniform magnetic field B. The magnetic feld is perpendicular to and pointing into the plane of the loop, as shown in the figure. Which of the following is correct?
(A) The induced EMF is BLu;
(B) The induced current is BLU/R;
(C)The force required to pull the loop is B2L2u/R;
(D) The power required to pull the loop is B2L2U2/R2
(E) The direction of the electric current is clockwise.

答案:登入後查看
統計: A(3), B(4), C(3), D(1), E(4) #2740301

詳解 (共 1 筆)

#7430957

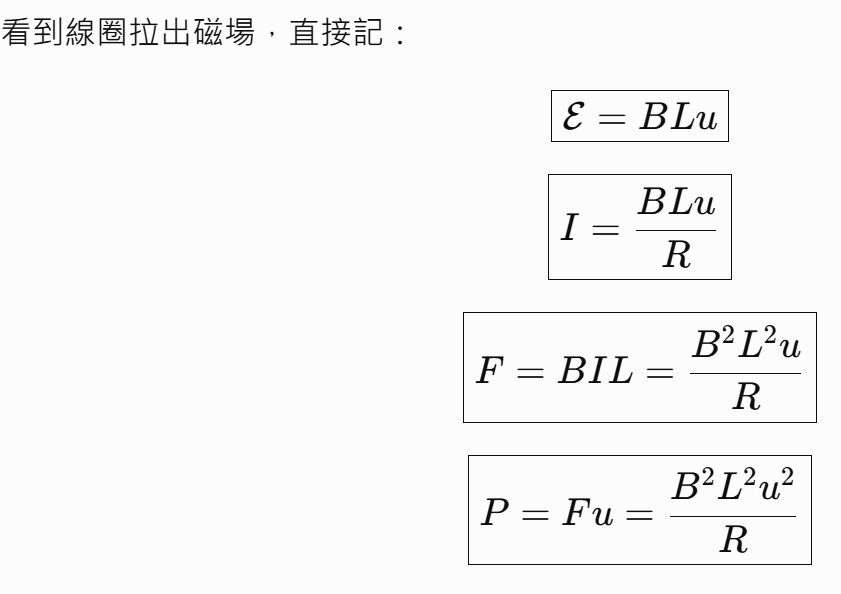

所以解這題要了解這些公式

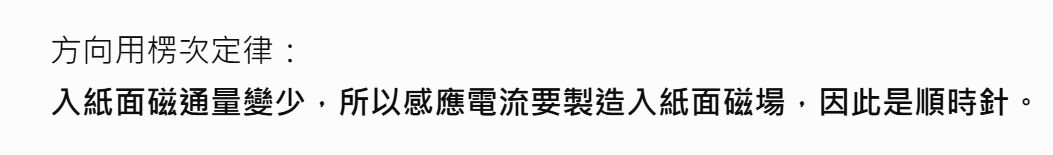

方向的話根據冷次定律
