20. An emf of 12.0 mV is induced in a 500 turn coil when the current is changing at a rate of 10.0 A/s. What is the magnetic flux through each turn of coil at the instant when the current is 3.00 A?
(A) 1.4 × 10⁻⁶ T·m²
(B) 2.2 × 10⁻⁶ T·m²
(C) 5.4 × 10⁻⁶ T·m²
(D) 7.2 × 10⁻⁶ T·m²
(E) 8.8 × 10⁻⁶ T·m²
答案:登入後查看
統計: 尚無統計資料
統計: 尚無統計資料
詳解 (共 1 筆)
#7440125
所以這題考的是線圈的自感

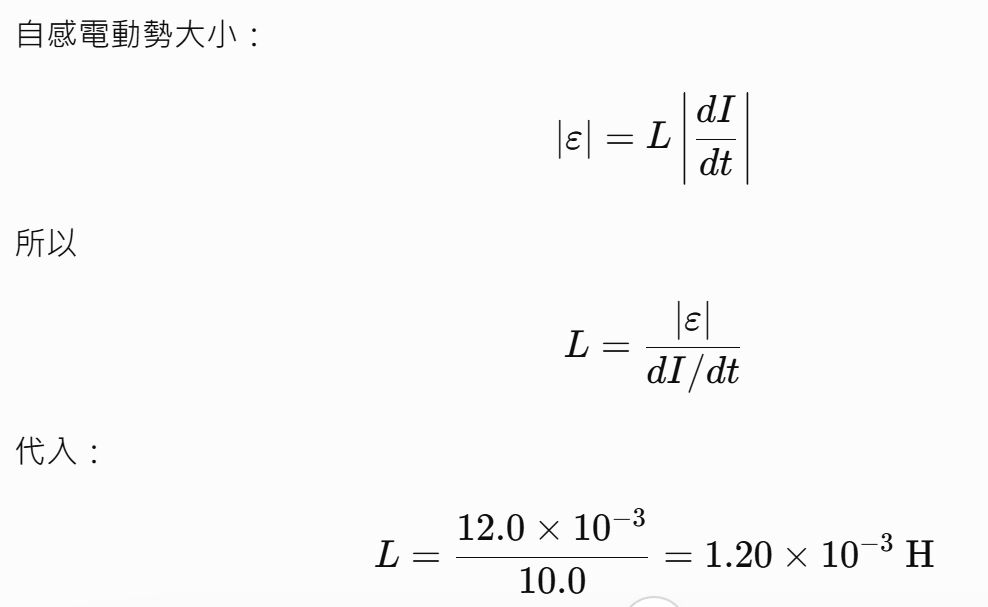

所以我們要了解兩個公式

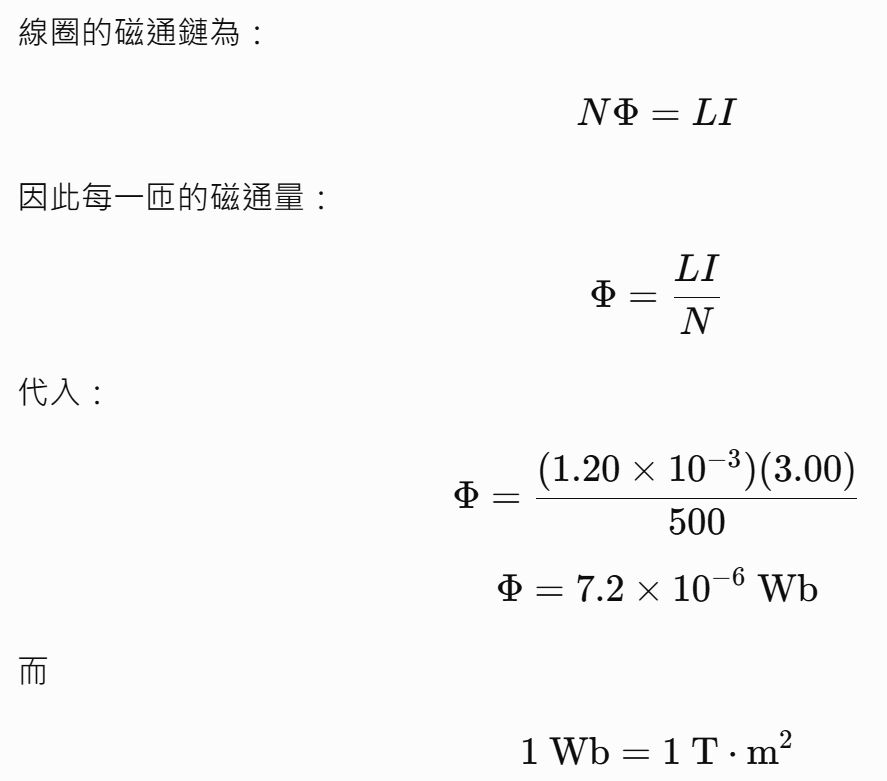

然後用磁通鍊關係去求每一閘的磁通量

ㅤㅤ

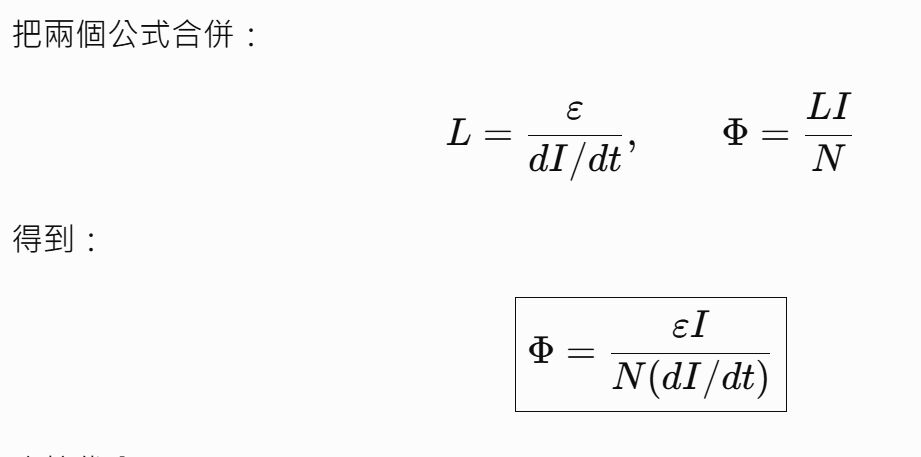

所以我們可以記它們兩個合併的公式
