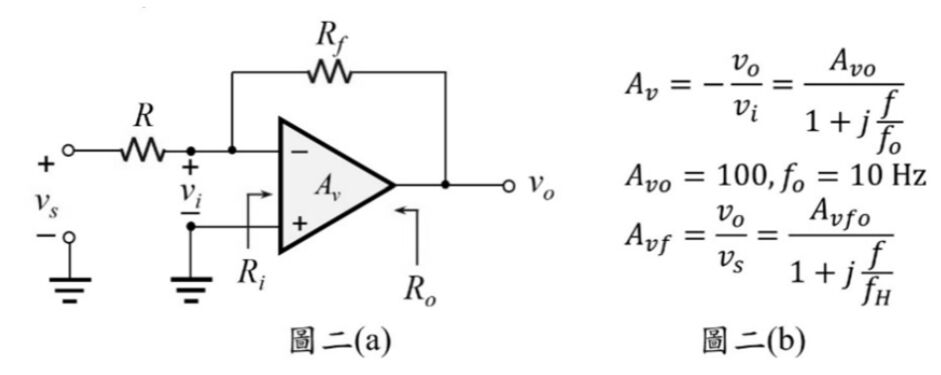

二、圖二(a)放大器 Ri = 22 kΩ，Ro = 0，R = 1 kΩ，Rf = 11 kΩ，開路增益 Av 與閉路增益 Avf = vo / vs 如圖二(b)，求算 Avfo 及 fH 之值。（20 分）

一、英譯中：請將下面這段英文譯成正確、流暢的中文（30 分）The pervasive integration of smart surveillance in modern residential complexes has sparked a contentious debate over consumer privacy. While property managers advocate for heightened security, residents often object to the unconsented gathering of their biometric data. Under basic tort law, individuals possess a "reasonable expectation of privacy" in their domiciles, a right that technology constantly threatens to encroach upon. Users routinely click "agree" to lengthy terms of service, but this passive acquiescence does not necessarily constitute legally binding consent under scrutinized consumer protection frameworks. As regulatory bodies struggle to reconcile technological convenience with constitutional protections, consumers must remain vigilant, understanding that safeguarding digital privacy is no longer merely a personal preference, but a vital civil liberty.

二、圖二(a)放大器 R_i= 22 kΩ，R_o = 0，R = 1 kΩ，R_f = 11 kΩ，開路增益 Av 與閉路增益 A_vf= v_o / v_s 如圖二(b)，求算 A_vfo及 f_H 之值。（20 分）

相關申論題

相關試卷

二、圖二(a)放大器 Ri = 22 kΩ，Ro = 0，R = 1 kΩ，Rf = 11 kΩ，開路增益 Av 與 閉路增益 Avf = vo / vs 如圖二(b)，求算 Avfo 及 fH 之值。 （20 分）

相關申論題

相關試卷

二、圖二(a)放大器 R_i= 22 kΩ，R_o = 0，R = 1 kΩ，R_f = 11 kΩ，開路增益 Av 與閉路增益 A_vf= v_o / v_s 如圖二(b)，求算 A_vfo及 f_H 之值。（20 分）
