109年 - 109 臺北市市立國民中學正式教師聯合甄選：生活科技(雙語)科#85956

51. According to the curriculum guidelines of technology domain of the 12-Year Basic Education, what grade should the activity of “automata toy” be planned in？ (A)Seventh grade (B)Eighth grade (C)Ninth grade (D)High school level

52. What kind of learning performance does “Be able to use technological tools to service and maintain technological products” belong to？ (A)Hands-on skills for everyday technology (B)Integration of technological competencies (C)Attitudes toward everyday technology usage (D)Technological knowledge for everyday life

53. In the curriculum guidelines of technology domain, which of the following does not belong to the focus of curriculum development in junior high school level？ (A)Creative thinking (B)Hands-on practice using technological tools, materials, and resources (C)Emphasis on engineering design and engineering design projects (D)Understand the development of technology and the relationship between technology and society

54. In the curriculum guidelines of technology domain, which of the following does not belong to the learning contents for “Mechanistic and structural applications of everyday technological products” in junior high school level？ (A)Transmission of force (B)Gear system (C)Principle of lever and connecting rod (D)Application of computer software for mechanism analysis

55. Which of the following statement about “gears” is incorrect？ (A)The mixer uses a gear mechanism to transmit power. (B)Gears can be used to change the direction and the speed of movement. (C)If the input gear is smaller than the output gear, the speed will increase. (D)The racks and gears mechanism can be used to change the rotary motion to linear motion.

56. Which of the following mechanism changes the constant speed rotary motion into intermittent reciprocating linear motion？ (A)Chain drive (B)Cam mechanism (C)Simple gear train (D)Worm and wheel

57. Which of the following mechanism transfers mechanical power from one place to another in a bicycle system？ (A)Belt (B)Chain Drive (C)Cam Follower (D)Gear

58. Which of the following structure is able to resist vertical pressure better？ (A) (B) (C) (D)

59. Which of the following statements about the structure is incorrect？ (A)The arch structure is well stressed, the disadvantage is that it takes up space. (B)The truss structure uses simple materials to withstand weight, and is often used to build bridges. (C)The cable structure is cheap and beautiful, and it is often used as the main structure of the building. (D)The beam-column structure is very stable for building houses, but it takes up space and consumes materials.

60. What type of structure does the DVD box belong to？ (A)A mass structure (B)A frame structure (C)A shell structure (D)A layered look

61. Which of the following is not considered to be a source of renewable energy？ (A)Water (B)Wind (C)Natural gas (D)Solar

62. Which of the following statement is incorrect？ (A)The role of the fuse in the circuit is to avoid excessive voltage. (B)If the length is the same, a wire with a larger cross-sectional area can withstand a larger current. (C)The fuse installed in the circuit or electrical appliance is a metal alloy wire with a low melting point and a large resistance. (D)Household electricity is parallel circuit.

63. How many time(s) does a four-stroke engine generates power during a complete cycle？ (A)1 (B)2 (C)3 (D)4

64. In AutoCAD software, which command is used to draw the line shown in the following figure？
(A)DOUNT (B)DIVIDE (C)ELLIPSE (D)ARC

65. Which of the following statement about the safety standards of living technology classrooms is "less" appropriate？ (A)Students should use the machine after the teacher demonstrates how to use it. (B)If students take any medicine due to illness, they should use the machine carefully to avoid accidents. (C)Pay attention to nearby people and wear goggles when using the machine. (D)Turn off the machine before leaving the work area after use.

66. Which of the following statement about the operation of a drill press is incorrect？ (A)The specifications of most tabletop drill presses are expressed by the maximum length of the drill bit. (B)When drilling large holes, pilot holes with small bits should be used first. (C)Large drill bits should use low speed drilling. (D)It is strictly forbidden to wear gloves when operating a drill press.

67. Which of the following statement about operating Circular Saw is incorrect？ (A)The saw blade should extend through the material being cut by 1/8 inches. (B)Safety glasses, hearing protection, respirator and gloves should be worn by the operators. (C)Material should be well supported when being cut to prevent binding the saw blade and causing a kickback. (D)Before putting the saw down after a cut has been made, make sure the cover is over the blade.

68. Which of the following statement is incorrect？ (A)Roller, twist, or triangular drill bits shanks should only be used in a drill press chuck. (B)The blade on the portable circular saw should be aligned on the waste side of the marking line when making a cut. (C)Press your wood against the upward moving side of the disc while using the Disc Sander. (D)When installing a blade of a scroll saw, ensure the teeth point downward.

69. Which of the following description of 3D printing is incorrect？ (A)PLC is currently the most commonly used and affordable 3D printing material. (B)"Stl" is the file format we export to print. (C)3D printing can quickly generate models. (D)Turn on "supports" to print a model with hands that stand out for the sides.

70. After an accident, when the teacher fills out the accident report form, which of the following is "unnecessary" to fill in？ (A)Describe how to deal with other students at the time of the accident. (B)Describe the details of the injury and indicate the affected body parts. (C)Describe how the accident happened. (D)Draw equipment configuration diagram and provide related photos.

71. What is the main induction technology used in mobile payments (such as Apple Pay or T Wallet, etc.)？ (A)RFID (B)Bluetooth (C)NFC (D)Infrared Ray

72. Which of the following description of laser cutting is incorrect？ (A)The laser will be unfocused, won't cut properly and the material might catch fire if the lens and mirrors are dirty. (B)Any vector file, such as Svg, Dxf, Pdf, etc. can be cut. (C)If there is a sustained flame, pause the job and call the staff. (D)During laser cutting, the focus can only be on the surface of the processing object.

73. For the front, side, and top views shown in the following figure, please match the correct three-dimensional object.
(A) (B) (C) (D)

74. Which manner are two power outlet on the wall most likely connected in？ (A)Parallel (B)Series (C)Closed loop (D)Open loop

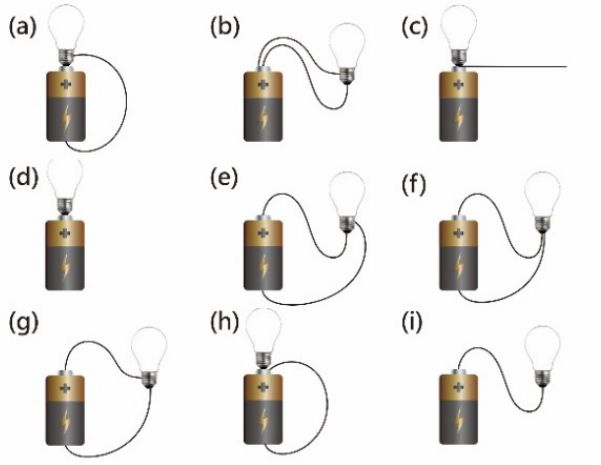

75. Which bulb can light up？
(A)e,g (B)a,f,h (C)a,e,g (D)h,g

76. In the diagram, the resistance of the light bulb is 1 ohm and the resistor is 1 ohm. If the voltage source is 8 voltage, what is the current in the light bulb？
(A)2A (B)1A (C)4A (D)8A

77. In the diagram, the resistance of the light bulb is 1 ohm and the resistor is 1 ohm. If the voltage source is 8 voltage, what is the current in the voltage source？
(A)2A (B)1A (C)4A (D)8A
