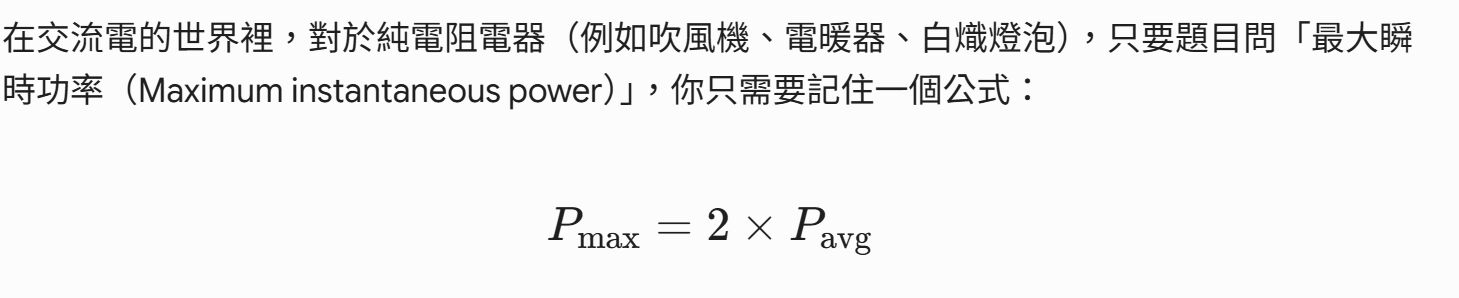

12. An electric hair dryer is rated at 1500 W at 110V. Calculate the maximum instantaneous power.
(A) 1500 W
(B) 2121 W
(C) 3000 W
(D) 3500 W

12. An electric hair dryer is rated at 1500 W at 110V. Calculate the maximum instantaneous power. (A) 1500 W, (B) 2121 W, (C) 3000 W, (D) 3500 W.

13. An electron moving at constant speed v in a circular orbit with radius r around the nucleus. What is the ratio of its magnetic dipole moment to its orbital angular momentum? (A) e/m (B) e/2m (C) -e/m (D) -e/2m

14. Suppose we use a Hall probe to measure the magnitude of a constant magnetic field. The Hall probe is a strip of copper with a height of 1 mm. We measure a voltage of 0.15 μV across the probe when we run a current 2 A through it. What is the magnitude of the magnetic field? (The density of copper is 8.96 g/cm3, and 1 mole of copper is 63.5 g and each copper atom has one conduction electron) (A) 0.5 T (B) 0.8T (C) 1.02 T (D) 2.1 T

15. A uniform electric field of 200 V/m is directed at 30° below the x axis, as shown in fig. 1. Find the changes in potential: Vb - Va. The coordinates are b = (2 cm, 3 cm) and a = (-2 cm, 0 cm). (A) -3.9 V (B) 3.9 V (C) -9.9 V (D) 9.9 V

16. Three parallel infinite sheets with charged densities are 2σ, -2σ and σ C/m² respectively and separate 2d and d, as shown in fig. 2. These sheets divide the space into four parts, I, II, III, and IV. Which two regions have the same electric field. (A) I and II (B) II and III (C) II and IV (D) I and III

17. A flat, circular coil of radius 4 cm carries a current of 1.3 A and produces a magnetic field of 4.9 Gauss at its center. How many turns does it have? (A) 12 (B) 24 (C) 36 (D) 48

18. The current in a long solenoid varies according to I(t) = 4+ 6t² A. The solenoid has 800 turns/m and a radius of 2 cm. At t = 2 s find the magnitude of the induced electric filed at 4 cm from the central axis. (A) 1.21x10⁻⁴ V/m (B) 1.21 x10⁻⁴ J/(A*m) (C) 2.42x10⁻⁴ V/m (D) 2.42x10⁻⁴ J/(C*m)

19. A coil is composed of circular loops of radius r = 5.13 cm and has N = 47 windings. A current, i = 1.27 A, flows through the coil, which is inside a homogeneous magnetic field of magnitude 0.911 T. What is the maximum torque on the coil due to the magnetic field? (A) 0.148Nt.m (B) 0.211 Nt.m (C) 0.350 Nt.m (D) 0.450 Nt.m

20. Calculate the potential difference induced between the tips of the wings with a wingspan of 64.67 m at a speed of 913 km/h. Assume the magnitude of the downward component of the earth's magnetic field is B = 5.0*10⁻⁵ T. (A) 0.82 V (B) 1.64 V (C) 2.95 V (D) 10.4 V

21. Which experiment indicates the particle-like wave? (A) Compton scattering (B) Rutherford scattering (C) Bragg reflection (D) Stern-Gerlach experiment
