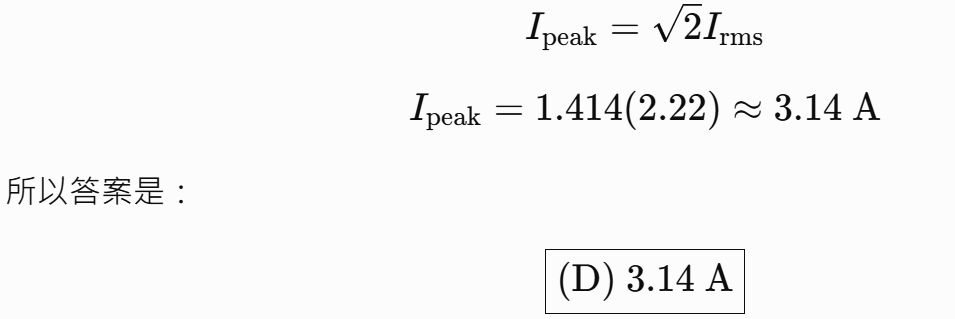

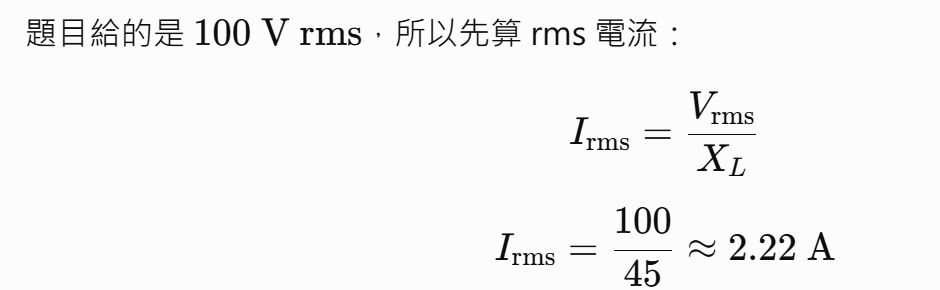

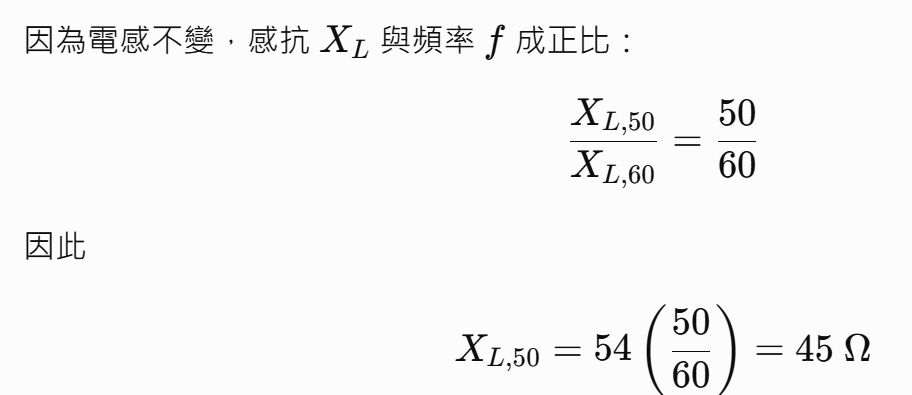

13. An inductor has a 54 Ohm reactance at 60 Hz. What will be the peak current if this inductor is connected to a 50 Hz source that produces 100 V rms voltage?
(A) 0.69 A
(B) 1.41 A
(C) 2.71 A
(D) 3.14 A
(E) 1.73 A

14. An inductor and a resistor are connected in series. When connected to a 60 Hz, 80 V source, the voltage drop across the resistor is found to be 35 V rms and the power dissipated in the circuit is 11 W. What is the value of the resistance? (A) 134 Ω (B) 151 Ω (C) 123 Ω (D) 97 Ω (E) 111 Ω

15. At what distance from a long straight wire carrying a current of 5.0 A is the magnetic field due to the wire equal to the strength of the earth's field, 5.0 × 10⁻⁵ T? (A) 0.02 m (B) 0.2 m (C) 2 m (D) 20 m (E) 200 m

16. The phasor diagrams on the right represent three oscillating emfs having different amplitudes and frequencies at a certain instant of time t = 0. As t increases, each phasor rotates counterclockwise and completely determines a sinusoidal oscillation. At the instant of time shown, the magnitude of ε associated with each phasor given in ascending order by diagrams is (A) a, b, c (B) b, c, a (C) a, c, b (D) c, b, a (E) need more information

17. A 2.0 microcoulomb particle with a kinetic energy of 0.10 J is fired into a uniform magnetic field of magnitude 0.10 T. If the particle moves in a uniform circular path of radius 3.0 m, determine its mass. (A) 1.3 × 10⁻¹² kg (B) 1.8 × 10⁻¹² kg (C) 3.1 × 10⁻¹² kg (D) 3.7 × 10⁻¹² kg (E) 4.2 × 10⁻¹² kg

18. Consider blackbody radiation. Suppose the intensity spectrum peaks at the wavelength λ for temperature T. According to Wien's Displacement Law, where would the spectrum reach its maximum when the temperature is increased to 2T? (A) λ/32 (B) λ/16 (C) λ/8 (D) λ/4 (E) λ/2

19. John presents a wedding ring to Mary. To impress her, he spins the ring about a vertical axis at a frequency of 60 Hz in a magnetic field of B = 0.5 T as shown. If the area of the ring is 2.0 × 10⁻⁴ m², calculate the maximum emf induced in the ring. (A) 0.038 V (B) 0.046 V (C) 0.052 V (D) 0.060 V (E) not enough information

20. An emf of 12.0 mV is induced in a 500 turn coil when the current is changing at a rate of 10.0 A/s. What is the magnetic flux through each turn of coil at the instant when the current is 3.00 A? (A) 1.4 × 10⁻⁶ T·m² (B) 2.2 × 10⁻⁶ T·m² (C) 5.4 × 10⁻⁶ T·m² (D) 7.2 × 10⁻⁶ T·m² (E) 8.8 × 10⁻⁶ T·m²

21. In which of the following materials does the light travel the fastest? (A) vacuum (B) water (n = 1.33) (C) glass (n = 1.50) (D) diamond (n = 2.42) (E) light travels at the same speed through all of the above materials

22. The importance of the Compton scattering experiment is that (A) it indicates that light has interference effects; (B) it shows that the speed of light is a constant in all directions; (C) it provides an accurate means to measure the speed of light; (D) it illustrates that the electron has wave nature; (E) it confirms the particle nature of radiation.

23. The light bulbs in the circuit (shown on the right) are identical. Ignore the internal resistance of the batteries. When the switch is closed, (A) nothing changes (B) both go out (C) the intensity of light bulb A increases (D) the intensity of light bulb A decreases (E) the intensity of light bulb B increases
