題組內容

7.

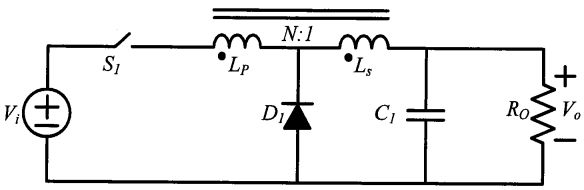

(5%) (a) A buck converter with coupled inductors, with a duty ratio D and in continuous conduction mode is shown in the following figure. Determine its voltage stress imposed on switch S1 and diode D1.
