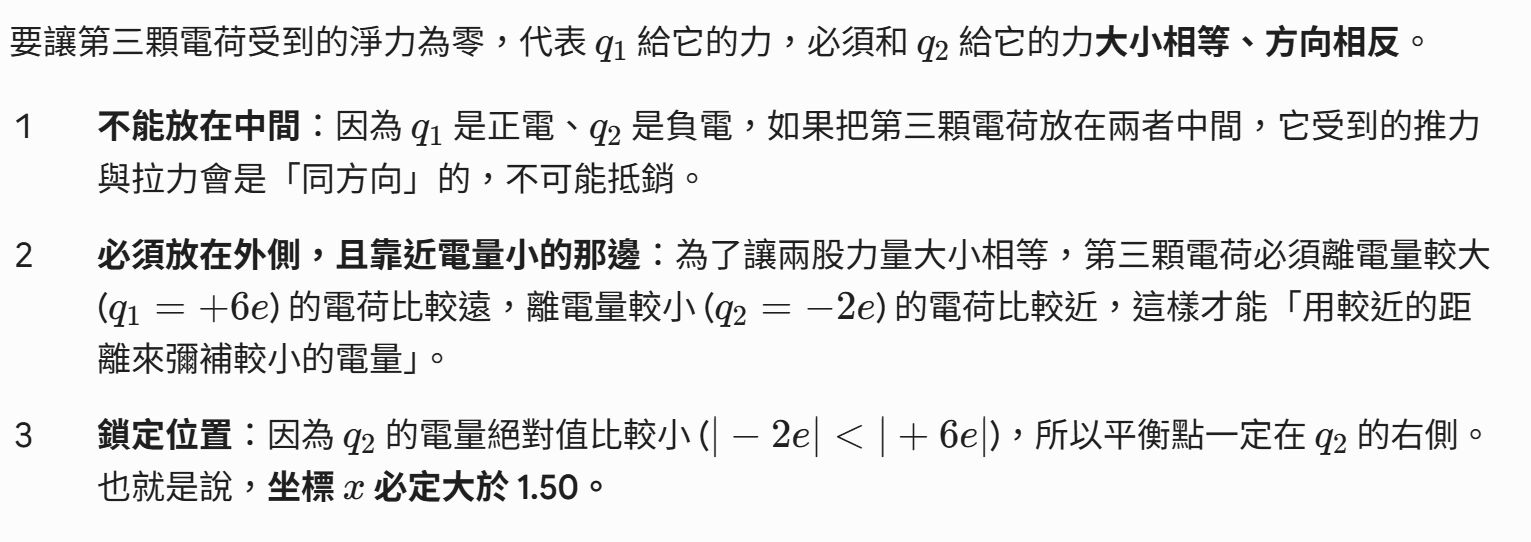

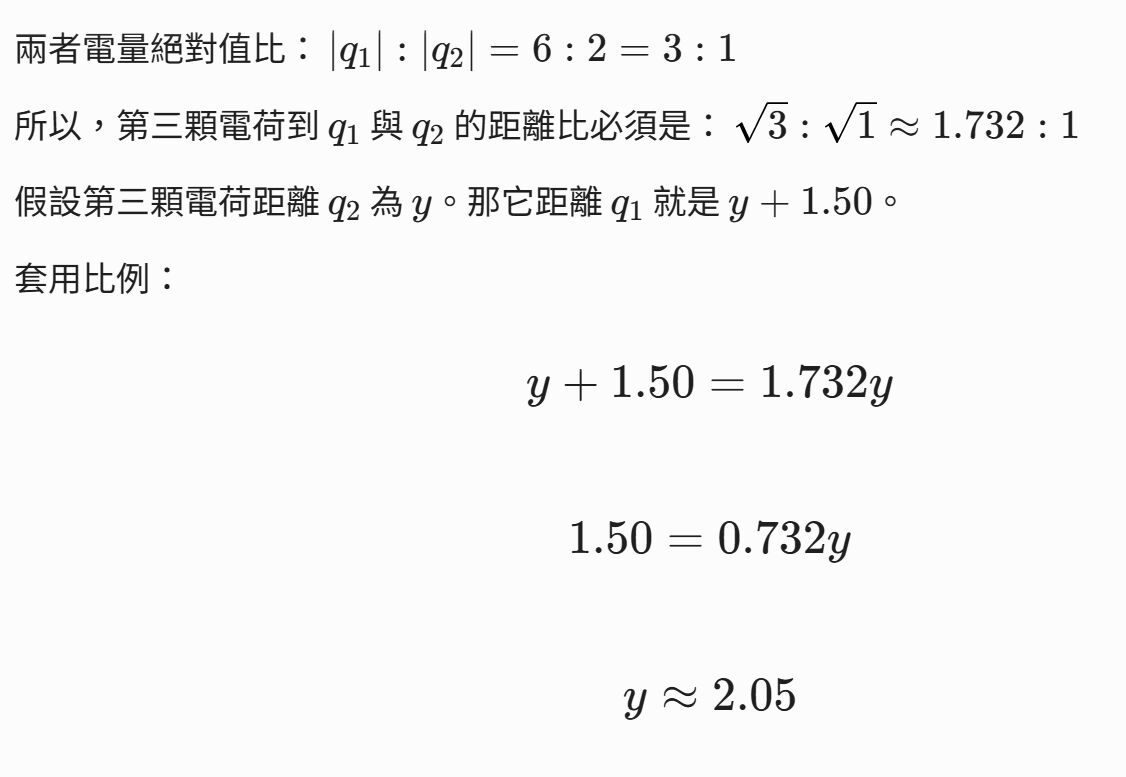

11. The figure shows two charged particles (q₁ = +6e, q₂ = -2e) that are fixed in place and separated by distance d = 1.50 m. At what x coordinate (m) can a third charged particle be placed such that the net force on the third particle is zero?


(A) 0.35
(B) -3.96
(C) 3.55
(D) -0.54
(E) 7.10.

12. The figure shows six charged rods. Some have the same sign charge throughout and are uniformly charged. The rest have one sign on one half and the opposite sign on the other half, with each half uniformly charged. For each rod, a point P on a perpendicular bisector is indicated. In which situation is the net electric field at P in the positive direction of the y axis?(A) 2 and 5, (B) 2 and 6, (C) 4 and 5, (D) 1 and 4, (E) 3 and 5.

13.The figure shows a Gaussian rectangular structure with sides parallel to the axes and in the electric field =(3.00x+2.00)+4.00+14.0N/C. What is the charge ( C ) enclosed by the structure?  (A) 7.91×10-11, (B) 9.56×10-10, (C) 2.66×10-9, (D) 0, (E) 3.72×10-8.

14. The figure shows three graphs of how a potential varies along an x axis. V₁ = -200 V, x₁ = 0.20 m； V2 = 400 V, x2 = 0.40 m； V3 = 300 V, x3 = 0.30 m. Rank the situations according to the magnitude of the electric field along the axis. (A) 1=2=3, (B) 2＞3＞1, (C) 3＞1＞2, (D) 3＞1=2, (E) 1＞2＞3.

15. The figure shows a battery (30.0 V) and three (uncharged capacitors): C₁=12.0 µF, C2= 4.00 μF, C3=6.00 µF. The switch is first thrown to the left to charge C₁. Then the switch is thrown to the right to transfer charge to C2 and C3. When equilibrium is reached, what is the energy (J) stored in C₁? (A) 3.75×10-3, (B) 2.52×10-6, (C) 5.89×10-5, (D) 9.60×10-2, (E) 1.04×10-4.

16. The figure shows an array of identical real batteries, each with emf 0.050 V and internal resistance 0.20 ohm. There are 400 branches, each with 200 batteries. What is the current ( A ) through the external resistor, which has resistance R = 0.40 Ω? (A) 2.5, (B) 5.6, (C) 20, (D) 12, (E) 58.

17. The first figure shows a closed loop with current i. The loop consists of a half-circle of radius r and a half circle of radius R = 2r. The second figure shows the same half-circles but the small one has been flipped over. The net magnetic field at the common center of the circular sections is B₁ for the first figure and B2 for the second figure. What is the magnitude of the ratio B2 / B1?(A) 0.75, (B) 3.0, (C) 0.10, (D) 1.5, (E) 5.0.

18. The figure shows two regions of uniform magnetic field. On the left of the dashed line, B₁ = 4.00r² in teslas and seconds, and on the right, B2 = 60.0 T. The dimensions are L₁ = 2.00 m and L2 = 3.00 m. The circuit includes an ideal 60 V battery, and the total resistance is 15.0 Ω. What is the current ( A ) in the circuit at time t = 3.00 s? (A) 9.83, (B) 1.91, (C) 5.60, (D) 16.8, (E) 2.50.

19. A certain elementary particle has a mass that is 207 times that of an electron. That type of particle has a proper lifetime of 2.20×10-6 s. What is the particle's kinetic energy (MeV) if we measure its lifetime as 8.17×10-6s? The electron's rest energy is 0.511 MeV. (A) 2.87×10², (B) 1.24×10³, (C) 6.33×10⁴, (D) 9.87×10², (E) 1.54×10⁴.

20. The figure is a plot of stopping voltage Vstop versus light frequency f in a photoelectric experiment with a certain metal. What happens to the plotted line if we switch to a metal with a smaller work function?(A) plot's slope increases, but horizontal intercept remains the same, (B) plot's slope decreases, but horizontal intercept remains the same, (C) plot shifts rightward and slope increases, (D) plot shifts leftward, with no change in slope, (E) there is no change in the plot.
