17. Adc motor with its rotor and field coils connected in series has an internal resistance of R. When the motor is running at full load on a supply of V, the emf in the rotor is . Which statement is not correct for this system?
(A) The current drawn by the motor from the supply is (V-ε )/R;
(B) The power delivered to the motor is V(V-ε )ε/R;
(C) The mechanical power developed by the motor is (V-ε) ε /R;
(D) All;
(E) None.

答案:登入後查看
統計: A(0), B(0), C(2), D(0), E(0) #3188048

詳解 (共 2 筆)

#7000345
1. 題目解析 這道題目涉及到直流電動...
(共 1083 字,隱藏中)
前往觀看
0
0
#7407294
所以馬達接上電壓V
轉子轉動會產生反電動勢
反電動勢會抵抗外加電壓,所以真正推動電流的電壓為

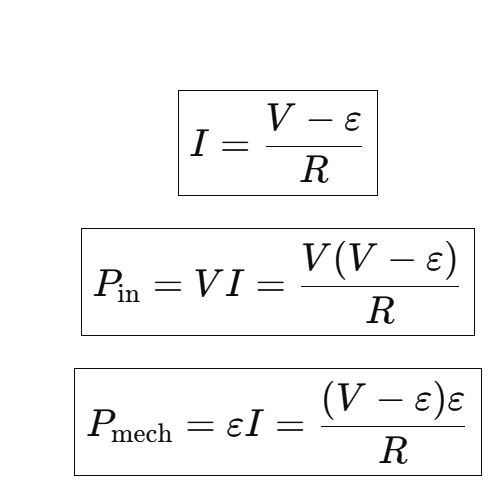

所以要記得這些公式
0
0
