申論題

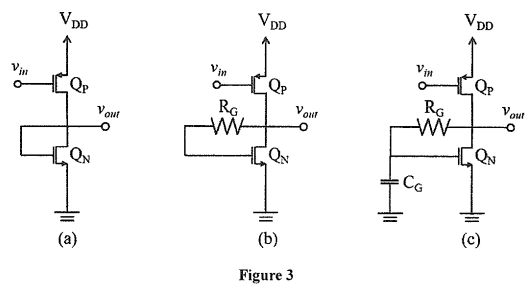

3. (15%) Please analyze the MOSFET cireuit shown as Figure 3. Assume all circuit are properly biased and operated in saturation region. Assume the transconductance of NMOS is and the transconductanc ce of PMOS is gm.P. And there is the same finite ou utput resistance (r_o) of these MOSFETs.
