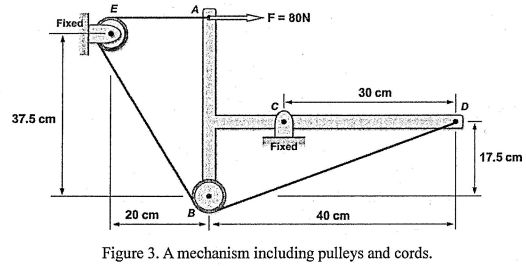

3. As shown in Figure 3, member ABCD is supported by a pin and bracket at C and by an inextensible cord attached at A and D and passing over frictionless pulleys at B and E. Neglecting the size of the pulleys.
