申論題

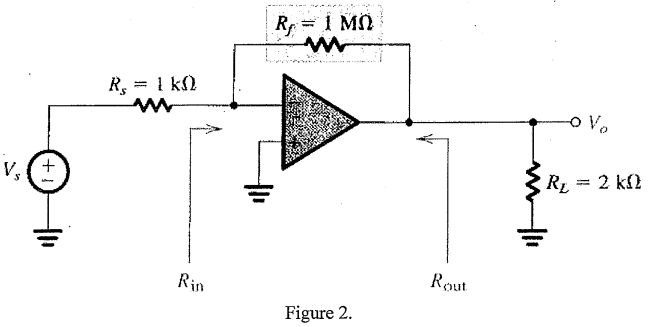

2.(20%) Figure 2 shows an op amp connected in the inverting configuration. The op amp has an open- loop gain μ = 10⁴, a differential input resistance = 100kΩ, and an output resistance r_o= 1kΩ. Use the feedback method to find

(b) the input resistance, and (c) the output resistance (7%,7%, 6%)
